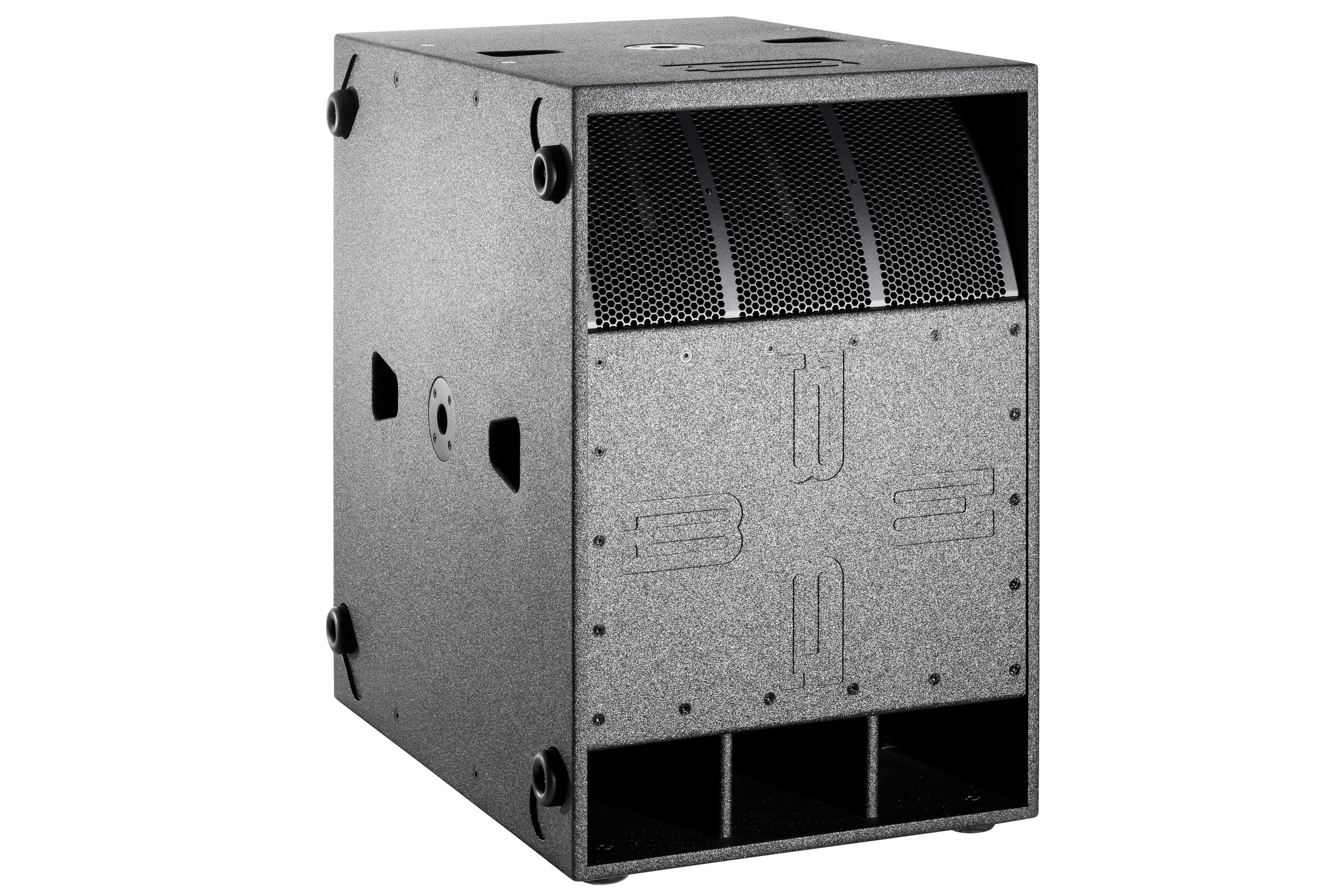

VS21 MK3 2,500-watt Single 21-inch Powered Subwoofer

This product is available to order online. Allow 1 - 2 weeks to process. In case of additional delays, you will be contacted. Please contact us with any questions about this product.

Specifications

Acoustical

Loudspeaker Description: Single 21” self-powered 6th order hybrid subwoofer
Frequency Response (±3 dB): 28 - 100Hz
Maximum Sustained Output: 135 dB 1m (half-space)
Max SPL (Peak): 138 dB 1m (half-space)
Nominal Dispersion (H° x V°): 360 x 360 – Cardioid Mode Available with Multiple Boxes

Electrical

Amplification: 2500 Watts Class D
Processing: Integrated comprehensive DSP. 96kHz sampling rate with 8 push-button presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage capacity for up to 100 presets
Electrical Connectors, Amp: Neutrik powerCON True 1 TOP - IP65 rated waterproof connectors
Electrical Connector, Mains: USA 3-pin grounding 120V electrical plug NEMA 5-15; Outside USA alternate connectors provided
Voltage Operating Range: 100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)
Current Draw, Nominal: 120V 4.6A (nominal); 240V 2.3A (nominal)
Signal Input Connectors: XLR-F
Signal Output Connectors: XLR-M (Direct pass-through, unprocessed)
LAN Connectors: EtherCON RJ45 (x2) with 2-port Ethernet switch

Physical

Enclosure Type: Vented, short-horn hybrid
Transducer: 1 x 21 in. diameter (540mm) neodymium motor woofer with 4.5 in. (115mm) voice coil.
Cabinet Construction: CNC machined 18 mm Baltic Birch plywood with extensive bracing and dado joinery with 4 x 35 mm pole sockets, 8 x integrated handles, 12 rubber feet. 8 interlocking foot pockets. 6 X M10 threaded fly points
Dimensions (HxWxD): 36” x 24” x 36” (91.44 cm x 60.96 cm x 91.44 cm) - 37.5” (95.25 cm) high with feet
Net Weight: 180 lbs. (82 kg)

Shipping Weight: 210 lbs. (104 kg)
Exterior Finish: High-pressure, bonded polyurea coating. Rugged, waterproof, textured black
Grill: Perforated, powder-coated steel
Pole Sockets: 4 (35 mm) pole sockets
Handles: 8 Integrated handles
Feet: 12 interlocking rubber feet
Suspension System: 16 X M10 threaded fly points

Optional

Transport Dollies (H or V): Birch plywood flat cart with 4 locking wheels and sockets to accept the cabinet feet. Vertical Transports 1 cabinet. Horizontal Transports up to 3 cabinets.
Covers: Heavy-duty padded nylon transport cover (Vertical)
Hardware: M10 Shoulder Eye Bolts, M10 Side-Pull anchors
GLL/Ease File: help.bassboss.com/portal/en/kb/articles/bassboss-ease-gll-files
