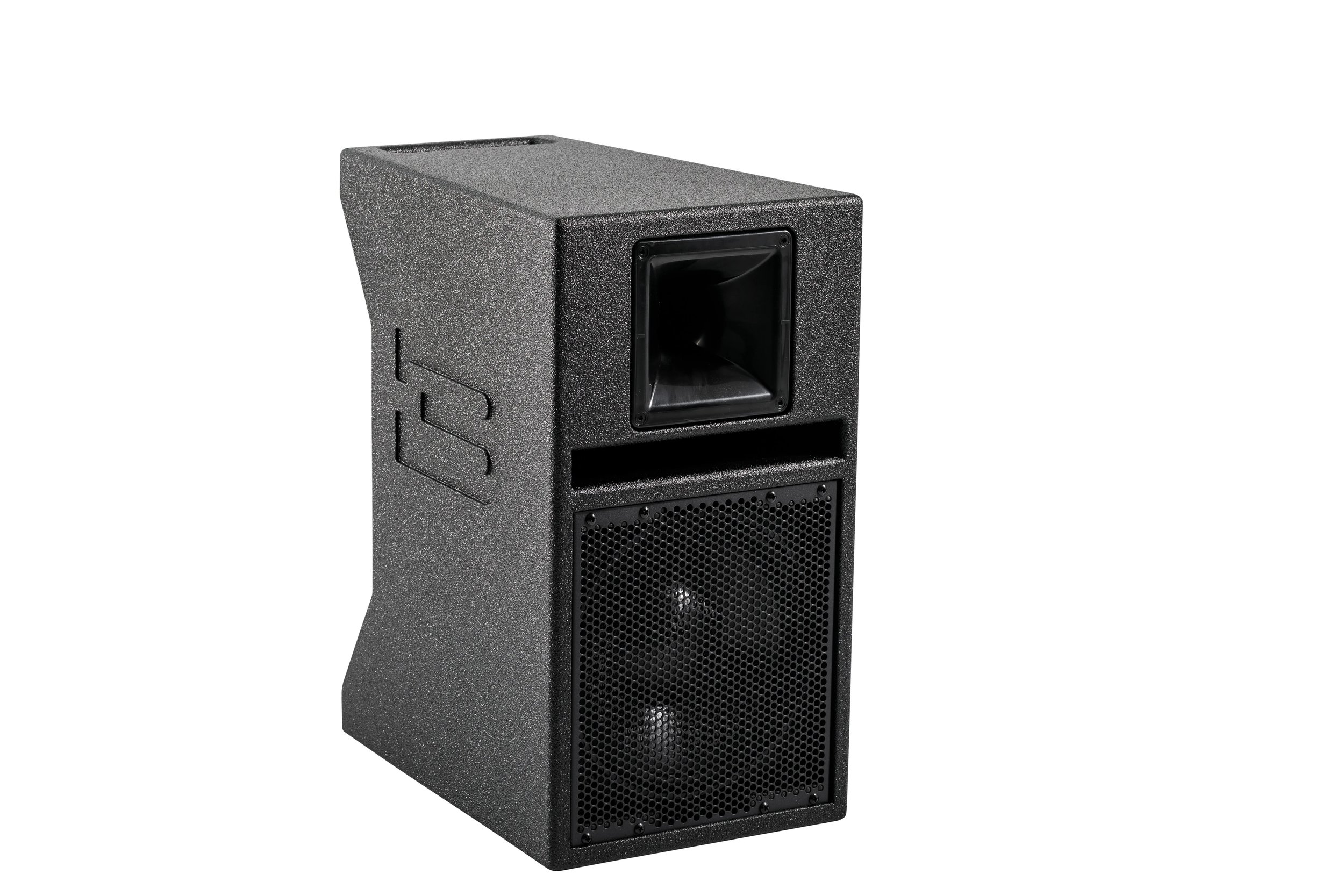

SV9-MK3 1,200-watt Single 9-inch Powered Speaker

This product is available to order online. Allow 1 - 2 weeks to process. In case of additional delays, you will be contacted. Please contact us with any questions about this product.

Specifications

Acoustical

Loudspeaker Description: 2-way active, Single 9” Self Powered, Vented, Direct-radiating Full-range

Frequency Response (±3 dB): 50 – 19,000Hz
Maximum Sustained Output: 118 dB 1m (full-space)

Max SPL (Peak): 121 dB 1m (full-space)

Nominal Dispersion (H° x V°): 90 x 60 (Rotatable)

Electrical

Amplification: 1200 Watts Class D, 2 Channel
Processing: Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage capacity for up to 100 presets
Electrical Connectors, Amp: Neutrik powerCON True 1 TOP IP65 rated waterproof connectors
Electrical Connector, Mains: USA 3-pin grounding 120V electrical plug NEMA 5-15; Outside USA alternate connectors provided
Voltage Operating Range: ge 100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)
Current Draw, Nominal: 120V 1.4A (nominal); 240V 0.7A (nominal)
Signal Input Connector: XLR-F
Signal Output Connector: XLR-M pass-through only
LAN Connectors: EtherCON RJ45 (x2) with 2-port Ethernet switch

Physical

Enclosure Type: 2-way full-range/mid-high. Direct radiating vented LF section, horn-loaded HF section
Transducer (Low Frequency): 1 x 9 in. diameter (220mm) neodymium motor woofer with 2.5 in. (64mm) copper winding voice coil and carbon-fiber cone
Transducer (High Frequency): 1.5 in. (38mm) diaphragm compression driver on 1 in. (25mm) throat 90 x 60 degree constant directivity horn
Cabinet Construction: CNC machined 15mm Birch plywood with extensive bracing and dado joinery. 2 integrated handles. 1 x 35mm steel pole socket
Dimensions (HxWxD): 18 in. x 10 in. (7 in. rear) x 15 in. (45.7cm x 25.4 cm [17.78 cm rear] x 38.1 cm)
Net Weight: 27.5 lbs (12.8 kg)
Shipping WeightL 31 lbs (14 kg)
Exterior Finish: High-pressure, bonded polyurea coating, waterproof, textured black
Grille: Perforated, powder-coated steel

Optional

Cover/Carrier: Heavy-duty padded nylon transport cover
What’s Included: Loudspeaker, 15’ (5m) Power Cable, Manual, Warranty Car
