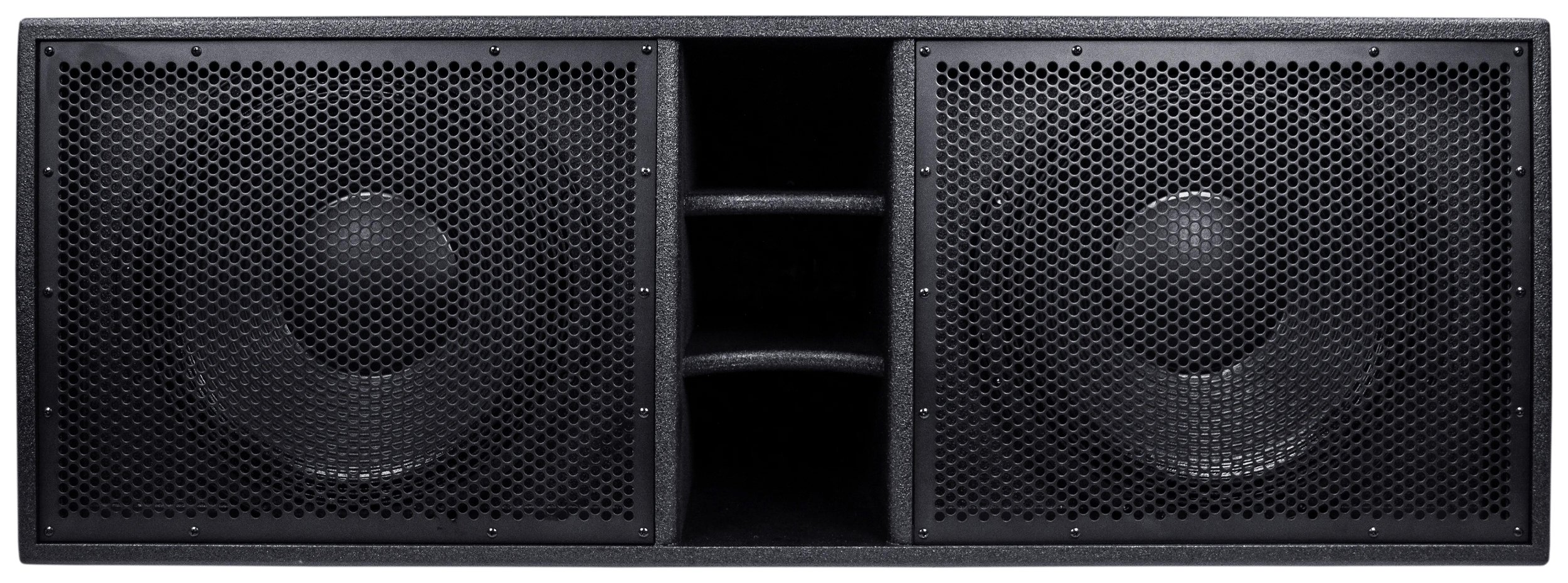

SSP215-MK3 5,000-watt Dual 15-inch Powered Subwoofer

This product is available to order online. Allow 1 - 2 weeks to process. In case of additional delays, you will be contacted. Please contact us with any questions about this product.

Specifications

Acoustical

Loudspeaker Description: Double 15” Self-Powered Vented Direct-Radiating Subwoofer
Frequency Response (±3 dB): 35-100Hz
Maximum Sustained Output: 133 dB 1m (half-space)
Max SPL (Peak): 139 dB 1m (half-space)
Nominal Dispersion (Hº x Vº): 360 x 360 – Cardioid Mode available with multiple boxes

Electrical

Amplification: 5000 Watts Class D (2 x 2500W)
Processing: Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage capacity for up to 100 presets
Electrical Connectors, Amp: Neutrik powerCON True 1 TOP - IP65 rated waterproof connectors
Electrical Connector, Mains: USA 3-pin grounding 120V electrical plug NEMA 5-15; Outside USA alternate connectors provided
Voltage Operating Range: 100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)
Current Draw, Nominal: 120V 9A (nominal); 240V 4.5A (nominal)
Signal Input Connector: XLR-F
Signal Output Connector: XLR-M - full-range direct pass-through

Physical

Enclosure Type: Direct radiating, vented enclosure, optimally tuned for low frequency response with high sensitivity and high power handling
Transducers 2 x 15 in. diameter (380mm) neodymium motor woofers with 4 in. (100mm) voice coils
Cabinet Construction: CNC machined 18mm Birch plywood with extensive bracing and dado joinery. 4 integrated handles. 1 x 35mm steel pole socket. 4 rubber feet. 4 interlocking foot pockets. 16 X M10 threaded fly points
Dimensions (HxWxD): 17.25 in. x 48 in. x 29.5 in. (18.5 in. high with feet)
Suspension System: 16 X M10 Threaded Fly points
Net Weight: 180 lbs. (82kg)
Shipping Weight: 200 lbs. (91 kg)
Exterior Finish: High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black
Grille: Perforated, powder-coated stee

Optional

Transport Dollies: Birch plywood flat cart with 4 heavy-duty locking casters. 4 pockets to accept the cabinet feet. 7 handles. Transports up to 5 cabinets.
Covers: Heavy-duty padded nylon transport covers for 1 cabinet
Hardware: M10 Shoulder Eye Bolts, M10 Side-Pull anchors
