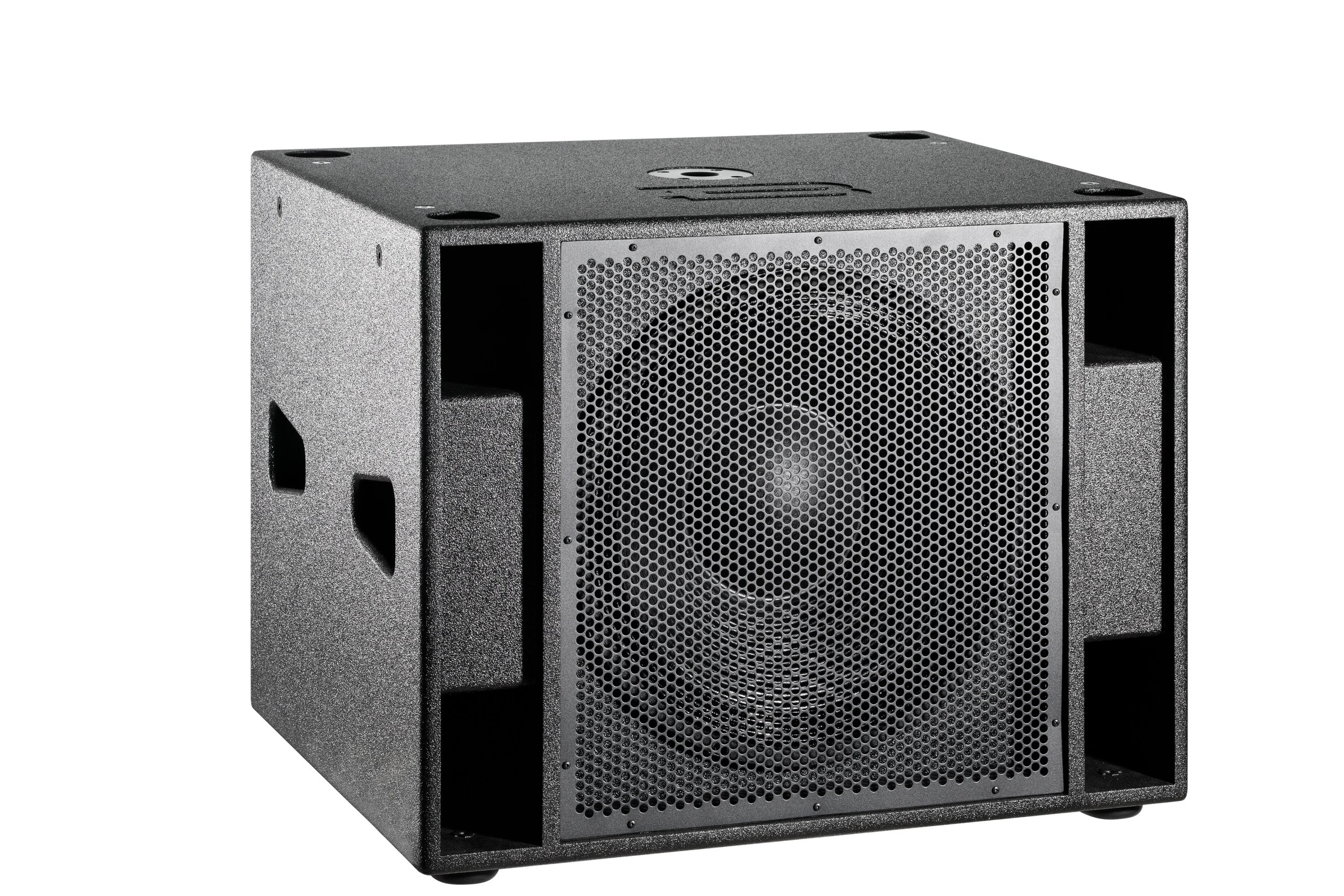

SSP118-MK3 2,500-watt Single 18-inch Powered Subwoofer

This product is available to order online. Allow 1 - 2 weeks to process. In case of additional delays, you will be contacted. Please contact us with any questions about this product.

Specifications

Acoustical

Loudspeaker Description: Single 18” Self-Powered Vented Direct-Radiating Subwoofer
Frequency Response (±3 dB): 30 – 100Hz
Maximum Sustained SPL: 130 dB 1m (half-space)
Max calculated SPL (Peak): 133 dB 1m (half-space)
Nominal Dispersion (H° x V°): 360 x 360 – Cardioid Mode Available with Multiple Boxes

Electrical

Amplification: 2500 Watts Class D
Electrical Connectors, Amp: Neutrik powerCON True 1 TOP IP65 rated waterproof connectors
Electrical Connector, Mains: USA 3-pin grounding 120V electrical plug NEMA 5-15; Outside USA alternate connectors provided
Voltage Operating Range: 100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)
Current Draw, Nominal: 120V 4.6A (nominal); 240V 2.3A (nominal)
Signal Input Connectors: XLR-F
Signal Output Connectors: XLR-M (Direct pass-through, unprocessed)
LAN Connectors: EtherCON RJ45 (x2) with 2-port Ethernet switch

Physical

Enclosure Type: Direct radiating, vented enclosure, optimally tuned for low frequency response with high sensitivity and high power handling
Transducer: 1 x 18 in. diameter (457mm) neodymium motor woofer with 4.5 in. (115mm) voice coil
Cabinet Construction: CNC machined 18mm Birch plywood with extensive bracing and dado joinery. 4 integrated handles. 1 x 35mm steel pole socket. 4 rubber feet. 4 interlocking foot pockets. 8 X M10 threaded fly points
Dimensions (HxWxD): 22.5 in. x 30 in. x 24 in. (23.25 in. high with feet)
Net Weight: 125 lbs. (82 kg)
Shipping Weight: 140 lbs. (104 kg)
Enterior Finish: High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black
Grille: Perforated, powder-coated stee
Pole Sockets: 1 (35 mm) steel
Handles: 4 Integrated handles
Feet: 4 interlocking rubber feet
Suspension System: 8 X M10 threaded fly points

Optional

Transport Dollies: Birch plywood flat cart with foot pockets to accept the cabinet feet, 4 handles and 4 heavy-duty locking casters. Transports up to 3 stacked cabinets.
Cover: Heavy-duty padded nylon transport cover
Covers: Multi-box soft covers for up to 4 cabinets when on a rolling cart
Hardware: M10 Shoulder Eye Bolts, M10 Side-Pull anchors
GLL/Ease File: help.bassboss.com/portal/en/kb/articles/bassboss-ease-gll-files
