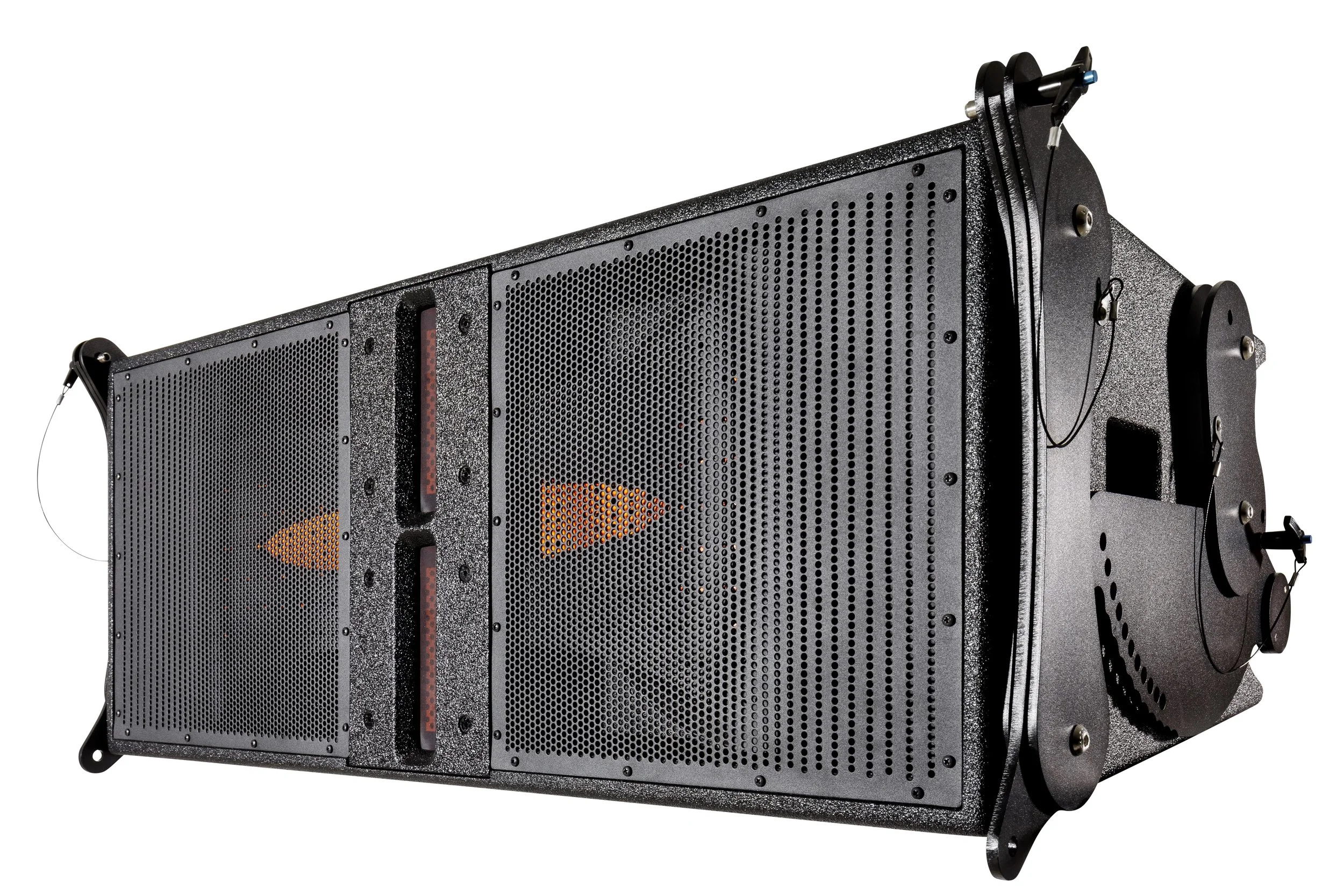

MFLA-MK3 3,200-watt Dual 12-inch Powered Line Array

This product is available to order online. Allow 1 - 2 weeks to process. In case of additional delays, you will be contacted. Please contact us with any questions about this product.

Specifications

Acoustical

Loudspeaker Description: Horizontally Symmetrical Dual 12”, Self-powered, Vented Line Array element with Pressure- Phase Distributed midrange loading and isophasic high-frequency wave guides.
Frequency Response (±3 dB): 60 – 19,000 Hz (preset dependent)
Maximum Sustained SPL: 143 dB

Max calculated SPL (Peak): 146 dB
Nominal Dispersion (H° x V°): 120 x 10

Electrical

Amplification: 3200W Class D: 2400W LF, 800W HF
Processing: Integrated comprehensive DSP with 8 local presets (Additional presets accessible via software)
Electrical Connectors, Amp: Neutrik Powercon True 1 TOP in and through
Electrical Connector, Mains: NEMA 5-15 (Edison)
Voltage Operating Range: 100-240V. Auto-sensing, auto switching universal supply
Current Draw, Nominal: 5A @120volts, 2.5A @240V (average with music program)
Display: LEDs for Power on/ready, Signal, -12dB, -6dB, Limiter Active, Thermal, Protect and LAN Link Active. Eight LEDs indicating selected preset
Signal Input Connectors: XLR-F
Signal Output Connectors: XLR-M (Direct pass-through, unprocessed)
LAN Connectors: EtherCON RJ45 (x2)

Physical

Enclosure Type: CNC machined 15mm multi-ply laminate with extensive bracing and dado joinery. External flyware and linking mechanism.
Transducer, LF: 2 x 12 in. diameter (300mm) Neodymium motor woofer with 3.5 in. (88mm) voice coil, waterproof cone
Transducer, HF: 2 x 1.4 in. (36mm) exit compression drivers with 3 in. (76mm) voice coils mounted to isophasic wave guides
Flyware: Integrated line array flyware, adjustable in one degree increments from 0 to 10 degrees.
Enterior Finish: Rugged, weatherproof, black, textured, bonded high-pressure polyurea coating, UHMWPE sliders
Grille: Perforated, powder-coated steel
Handles: 2 Integrated handles
Dimensions (HxWxD): 16.125 in. x 40.5 in. x 20.375 in. (Including Flyware)
Net Weight: 104 lbs. (47 kg)
Shipping Weight: 110 lbs. (49.9 kg)

Optional

IP Connections: IP-65 rated signal connections and isolated DSP
Array Frame (Bumper Bar): Standard Rigging Frame with multiple lifting points
Covers: Multi-box soft covers for up to 4 cabinets when on a rolling cart
Transport Dolly: Ground Support Rolling Cart - provides array angle adjustment when used for ground support deployment
