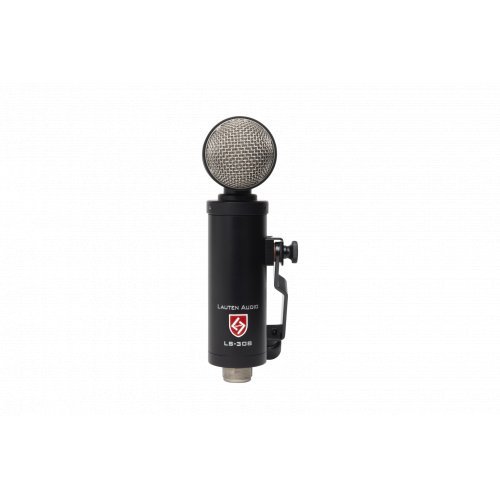

Lauten Audio LS-308 Large Diaphragm Condenser Mic

$647.00
Quantity:
Add To Cart
This product is available to order online. Allow 1 - 2 weeks to process. In case of additional delays, you will be contacted. Please contact us with any questions about this product.

The LS-308 is a problem solver – a microphone designed specifically for when isolation is needed, but difficult to achieve. This one-of-a-kind, side address condenser microphone hears like a laser, sounds like a ribbon, and is able to withstand a staggering 135dB of SPL without internal padding. Track electric guitars in front of a live drum kit, or the bottom of a snare drum with astonishing dynamics and isolation.

UNMATCHEDISOLATION

270 degrees of off-axis rejection allows you to confidently capture loud, impactful sounds live without the need to replace toms or retrack guitars due to bleed.

ULTRA-HIGH SPL AND DYNAMIC RANGE

Capable of withstanding a staggering 135dB of SPL without internal padding, the LS-308 is nearly impossible to overload. Capture the loudest sound sources reserved for dynamic microphones with ease.

DARK BY DESIGN

Creating a microphone with such strong off-axis rejection had a unique timbral side-effect -- asound similar to a ribbon microphone, but without the fragility. This classic timbre can be further shaped with two analog filters that allow for immediate sound-shaping right at the source.

PREMIUM COMPONENTS

The LS-308 signal path is hand-populated with high resolution, low distortion polypropylene capacitors and resistors, a US made low-noise FET, and a custom wound output transformer. The result is amassively impactful sound with unmatched isolation and SPL handing.

DESIGNED & TESTED IN SILICON VALLEY, CA

Each LS-208 is lovingly designed and crafted to last a lifetime by the Lauten Audio family

IN THE BOX

  • LS-308

  • Flight Case

  • Adjustable Hard Mount

  • Foam Windscreen

IDEAL FOR USE ON

  • Electric guitar

  • Toms

  • Bottom Snare

  • Any source where isolation is needed

  • Loud sounds that would destroy a ribbon or classic condenser element

NOTE: The LS-308 is not recommended for use on vocals

SPECIFICATIONS

  • Type: Side-address pressure gradient FET condenser

  • Capsule: 35mm

  • Polar Patterns: Second-order Cardioid

  • Freq. Response: 20Hz-20KHz (Roll off begins at 7kHz due to rejection)

  • Dynamic Range: 135dB

  • SPL handling: >135dB (0.5%THD@1000Hz)​

  • Impedance: >150 ohms

  • Self-noise level: <15dB-A

  • Sensitivity: 10.5mV/Pa -46dBV(0dB=1V/Pa 1KHz)

  • Connector: 3-pin XLR

  • Power: Requires 48v Phantom Power
