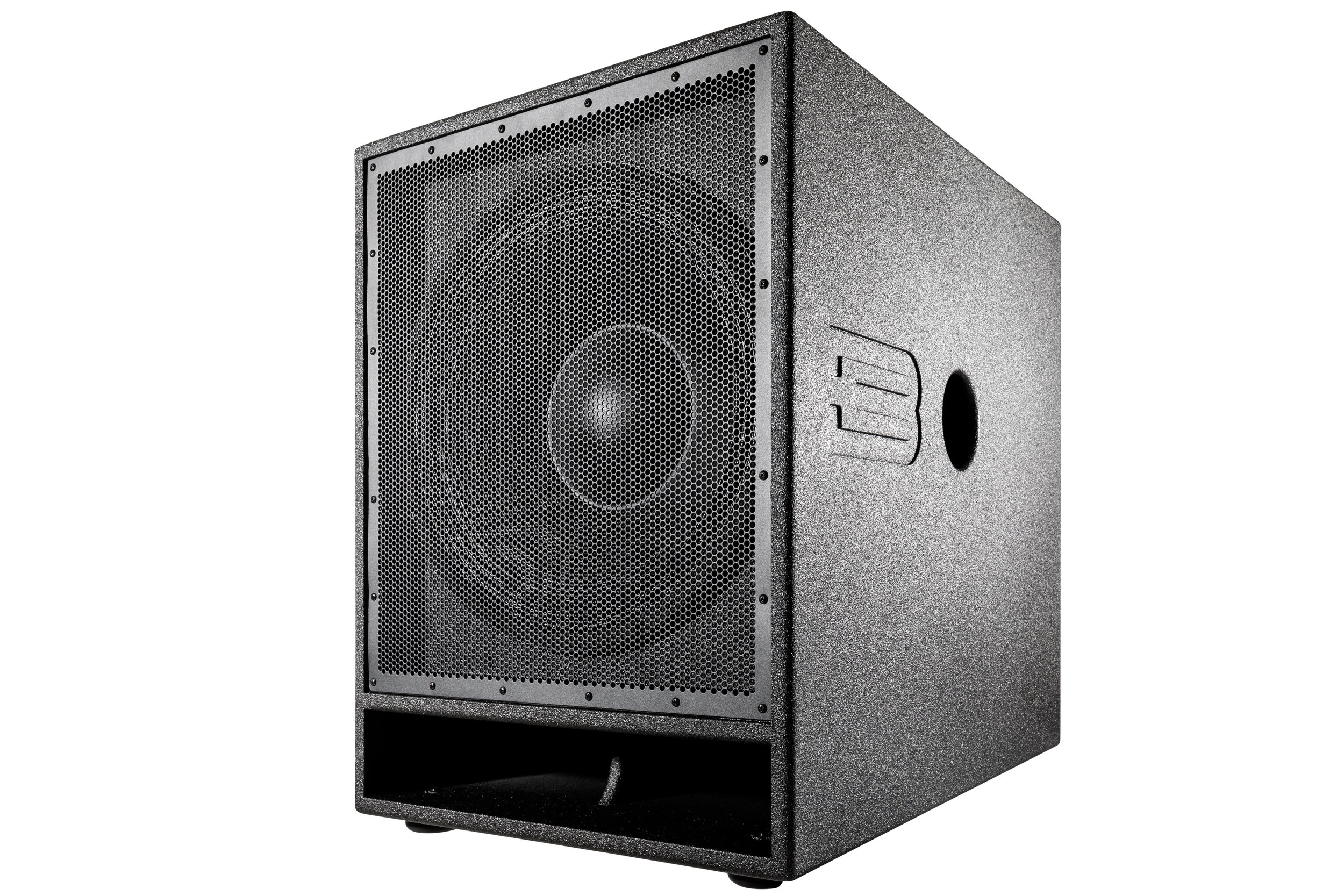

DJ18S-MK3 2,500-watt Single 18-inch Powered Subwoofer

This product is available to order online. Allow 1 - 2 weeks to process. In case of additional delays, you will be contacted. Please contact us with any questions about this product.

Specifications

Acoustical

Loudspeaker Description: Subwoofer, single 18” powered and processed
Frequency Response (±3 dB): 27 - 100 Hz (Preset dependent)
Maximum Measured Output: 129 dB 1m (half-space)
Max calculated SPL (Peak): 132 dB * 1m (half-space)
Nominal Dispersion (H° x V°): 360 x 360 – Cardioid Mode Available with Multiple Boxes

Electrical

Amplification: 2500 Watts Class D
Processing: Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage capacity for up to 100 presets.
Electrical Connectors, Amp: Neutrik powerCON True 1 TOP IP65 rated waterproof connectors
Electrical Connector, Mains: USA 3-pin grounding 120V electrical plug NEMA 5-15; Outside USA alternate connectors provided
Voltage Operating Range: 100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)
Current Draw, Nominal: 120V 4.6A (nominal); 240V 2.3A (nominal)
Signal Input Connector: XLR-F
Signal Output Connector: XLR-M (Direct pass-through, unprocessed)
LAN Connectors: EtherCON RJ45 (x2) with 2-port Ethernet switch

Physical

Enclosure Type: Direct radiating, vented enclosure tuned for high sensitivity at low frequencies
Transducer: 1 x 18 in. diameter (457mm) neodymium motor woofer with 4.5 in. (115mm) voice coil
Cabinet Construction: CNC machined 18mm Birch plywood with extensive bracing and dado joinery. 2 integrated handles. 1 x 35mm steel pole socket. 4 rubber feet. 16 T-nuts and bolts for mounting optional casters.
Dimensions (HxWxD): 27.5 in. x 20.5 in. x 29.5 in. (28.75 in. high with feet)
Net Weight: 110 lbs. (50 kg)
Shipping Weight: 125 lbs. (57 kg)
Exterior Finish: High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black.
Grille: Perforated, powder-coated steel
Pole Sockets: 1 (35 mm)
Handles: 2 Integrated Handles
Feet: 4 rubber feet
Caster Mounts: Attachment points and hardware for four casters are provided on back of cabinet

Optional

Cover: Heavy-duty padded nylon transport cover
Casters: Locking 4” (100mm) swivel casters kit, 4 pieces
What’s Included: Loudspeaker, 15’ (5m) Power Cable, Manual, Warranty Card
