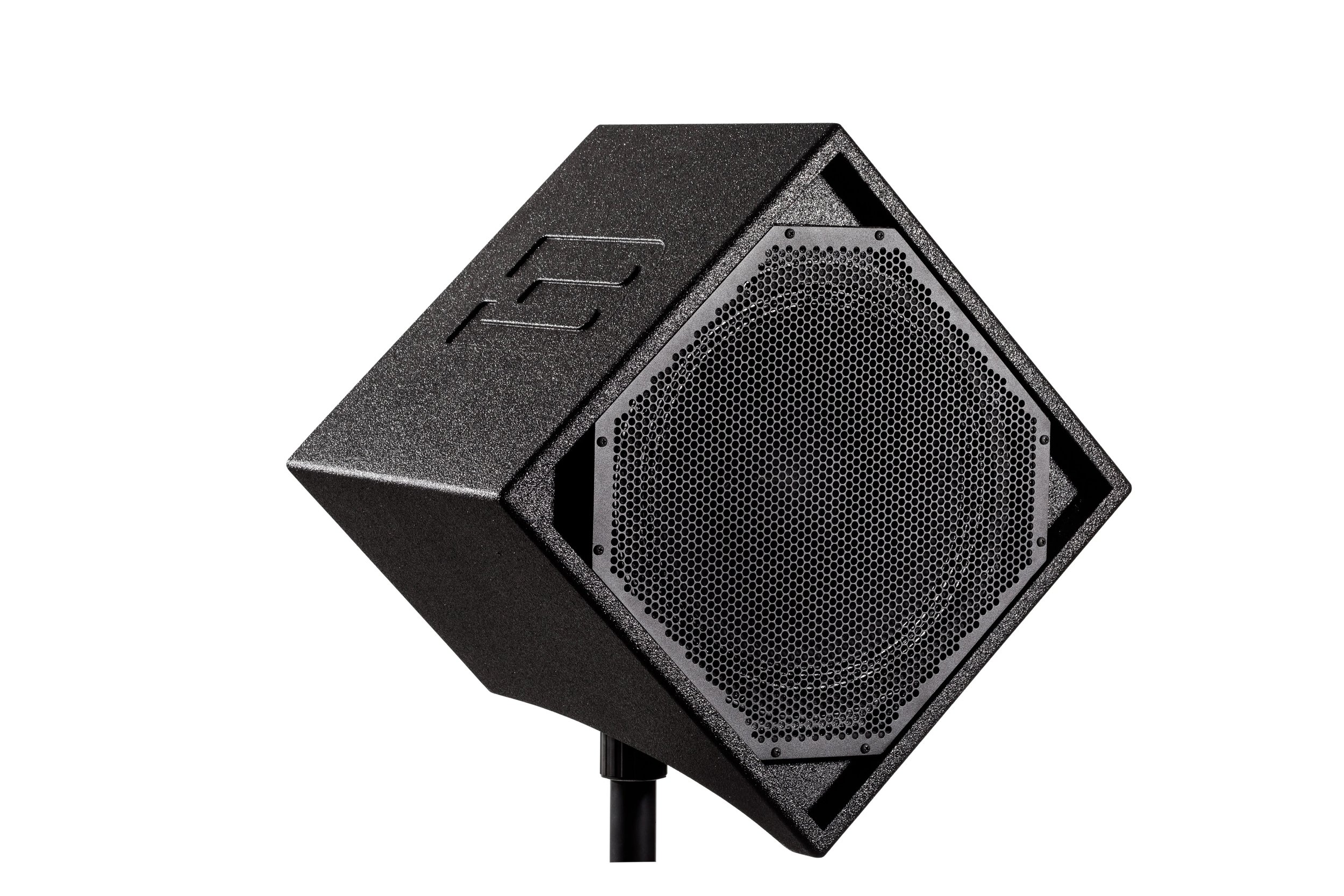

DiaMon-MK3 1,200-watt Single 12-inch Coaxial Powered Speaker

This product is available to order online. Allow 1 - 2 weeks to process. In case of additional delays, you will be contacted. Please contact us with any questions about this product.

Specifications

Acoustical

Loudspeaker Description: 2-way active 12” monitor with presets for full-range and mid-high operation
Frequency Response (±3 dB): 50Hz - 19kHz (Full Range - Preset 1)
Maximum Sustained Output: 123 dB 1m (full-space)
Max SPL (Peak): 126 dB 1m (full-space)
Nominal Dispersion (H° x V°): 80 x 80 (Conical)

Electrical

Amplification: 1200 W Class D, 2 Channel
Processing: Integrated comprehensive DSP provides all necessary high-pass and low pass filters, equalization, phase alignment and limiting
Electrical Connectors, Amp: Neutrik powerCON True 1 TOP input and pass-through
Electrical Connector, Mains :USA 3-pin grounding 120V electrical plug NEMA 5-15; Outside USA alternate connectors provided
Voltage Operating Range: 100 - 240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)
Current Draw, Nominal: 120V 1.4A (nominal); 240V 0.7A (nominal)
Signal Input Connector: XLR-F
Signal Output Connector: XLR-M (pass-through only)
LAN Connectors EtherCON RJ45 (x2) with 2-port Ethernet switch

Physical

Enclosure Type: Sealed direct radiating low-frequency section and co-axially horn-loaded high-frequency section
Transducer (Low Frequency): 1 x 12 in. diameter (300 mm) neodymium motor woofer with 3 in. (76mm) copper voice coil
Transducer (High Frequency): 3 in. (76mm) diaphragm compression driver on 1.4 in. throat 80-degree conical horn
Cabinet Construction: 15 mm Birch plywood, dado joinery. Equipped with a 35mm steel pole socket
Dimensions (HxWxD): 14 in. (35.5cm) x 14 in. (35.5cm) x 11 in. (28cm)
Net Weight: 30 lbs (13.5kg)
Shipping Weight: 35 lbs (16kg)
Exterior Finish: Black weatherproof bonded high-pressure polyurea
Grille: Perforated, powder-coated steel with hydrophobic cloth liner
Pole Socket: 35mm steel

Optional

Cover: Heavy-duty padded nylon transport cover and carrying bag
What’s Included: Loudspeaker, 15’ (5m) Power Cable, Manual, Warranty Card
