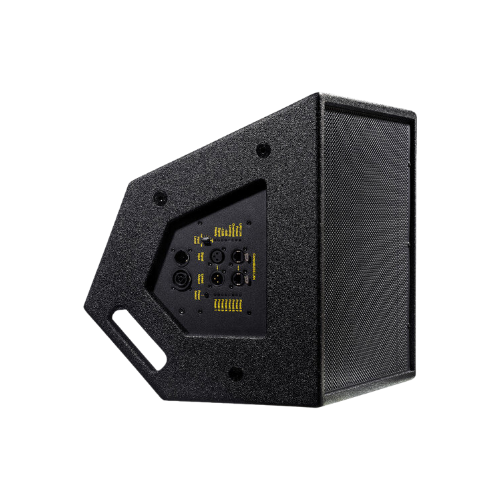

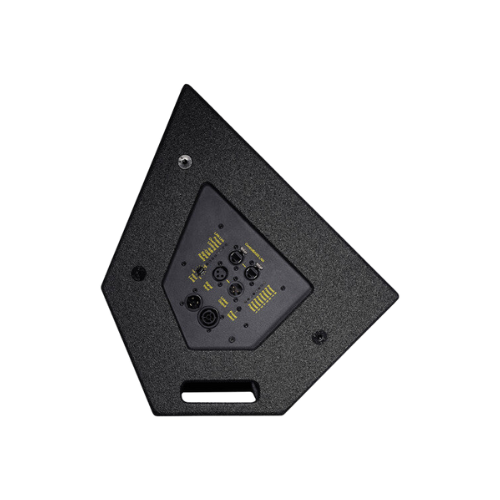

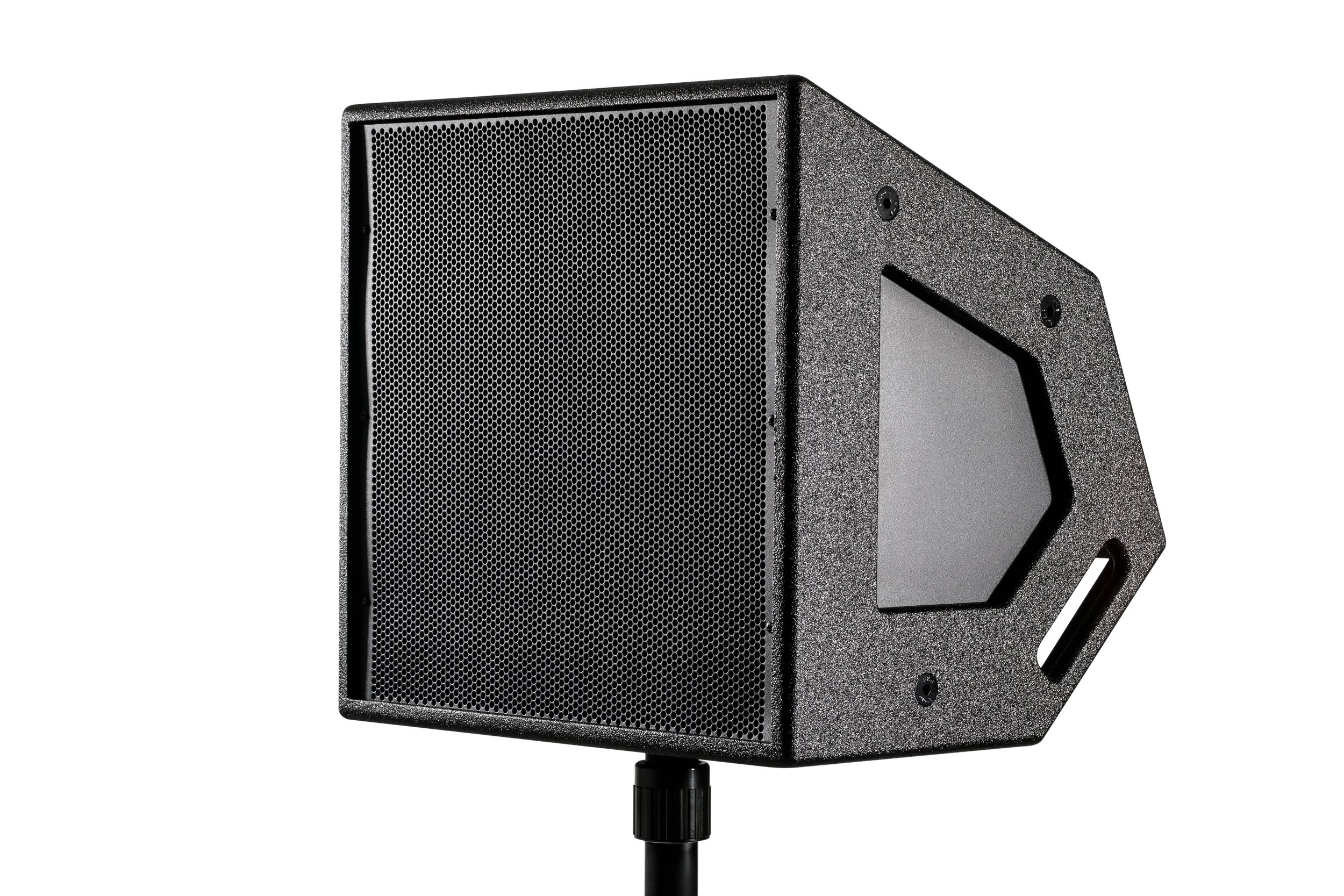

CCM12-MK3 1,200-watt Single 12-inch Coaxial Powered Monitor Wedge

This product is available to order online. Allow 1 - 2 weeks to process. In case of additional delays, you will be contacted. Please contact us with any questions about this product.

Specifications

Acoustical

Loudspeaker Description: 2-way active monitor. Self-powered and internally processed with presets for full-range and mid-high operation
Frequency Response (±3 dB): 50Hz - 19kHz (Full Range - Preset 1)
Maximum Sustained Output: 123dB SPL, 1m, 2pi, half-space
Max SPL (Peak): 126 dB
Nominal Dispersion (H° x V°): 80 x 80 (Conical)

Electrical

Amplification: Class D, 1200 W, 2 Channels
Processing: Integrated comprehensive DSP provides all necessary high-pass and low pass filters, equalization, phase alignment and limiting
Electrical Connectors, Amp: Neutrik powerCON True 1 TOP input and pass-through
Electrical Connector, Mains: NEMA 5-15 (Edison) standard 3-pin grounded plug
Current Draw, Nominal: 1.4A @ 120V - 0.7A @ 240V (average, with music)
Signal Input Connector: XLR-F
Signal Output Connector: XLR-M (pass-through only)
LAN Connectors: EtherCON RJ45 (x2) with 2-port Ethernet switch

Physical

Enclosure Type: Birch wood enclosure - Sealed direct radiating low-frequency section and co-axially horn-loaded high-frequency section
Transducer (Low Frequency): 1 x 12 in. diameter (300 mm) neodymium motor woofer with 3 in. (76mm) copper voice coil
Transducer (High Frequency): 3 in. (76mm) diaphragm compression driver on 1.4 in. throat 80-degree conical horn
Cabinet Construction: 18mm and 15 mm Birch plywood. Dado joinery. Equipped with a 35mm steel pole socket
Dimensions (HxWxD): 14 in. (35.5cm) x 14 in. (35.5cm) x 11 in. (28cm)
Net Weight: 29.76 lbs (13.5kg)
Shipping Weight: 35 lbs (15.9kg)
Exterior Finish: Black weatherproof bonded high-pressure polyurea
Grill: Perforated, pow
Pole Socket: 35mm, Stee
